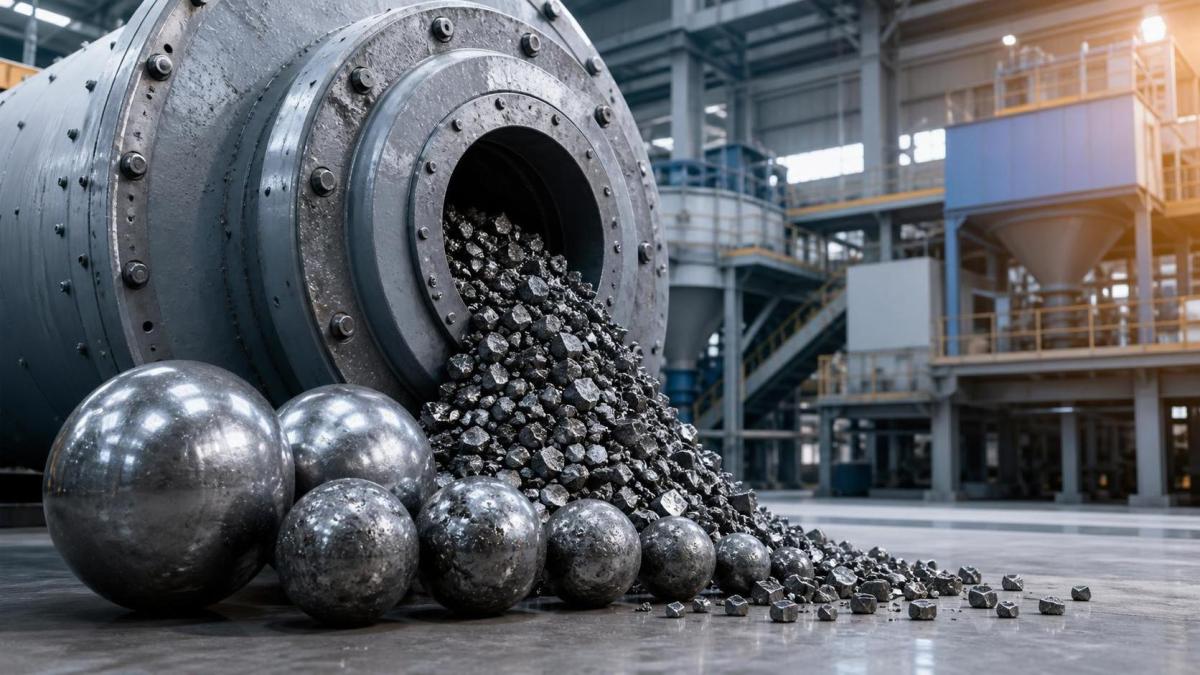

Forged Steel Ball Wear Rate

A grinding circuit can appear stable while its media cost quietly rises: mill power remains near target, feed rate is unchanged, yet ball additions become more frequent and the discharge contains more worn fragments than expected. In this situation, forged steel ball wear rate is not just a purchasing concern. It affects charge composition, grinding efficiency, liner exposure, maintenance planning, and the consistency of downstream classification.

The useful starting point is this: wear rate should be evaluated as a mill-specific consumption pattern, not as a hardness number or a supplier claim in isolation. A lower wear rate is valuable only when the balls also retain enough diameter, roundness, and impact resistance to perform their intended breakage work. The right response is to establish a reliable baseline, separate normal abrasion from abnormal breakage, and match ball material and size distribution to the actual milling environment.

What wear rate means in an operating mill

Forged steel balls lose mass through several mechanisms at the same time. Abrasive wear removes material when ore particles and slurry slide across the ball surface. Impact wear occurs as balls collide with ore, liners, and other balls. Corrosive wear can accelerate loss in wet grinding where water chemistry, dissolved oxygen, sulphide minerals, pH, and galvanic effects are present. In some cases, surface fatigue and cracking lead to spalling or breakage, which produces a much more serious form of media loss than gradual abrasion.

Plants usually track media consumption in kilograms of balls added per tonne of ore processed. This operational number is practical, but it should not be treated as a direct material property. It includes the effects of feed hardness, mill diameter, charge level, ball size mix, throughput, mill speed, classification efficiency, liner condition, and operating interruptions. A mill processing a highly abrasive ore may show a higher consumption figure than another mill using the same media, even if the forged balls are performing correctly.

A sound assessment therefore combines consumption records with physical inspection. Weight loss alone cannot explain whether balls are wearing evenly, becoming undersized too early, flattening, cracking, or breaking into irregular pieces. Each condition points toward a different cause and requires a different correction.

Recognize the difference between normal wear and a problem

Uniform diameter reduction is generally the expected pattern. A forged ball gradually becomes smaller while remaining broadly spherical, and its surface may become smoother through service. The mill charge then shifts naturally from larger impact media toward smaller grinding media. This process can be managed with an appropriate top-up schedule.

Abnormal wear often announces itself through visible changes before the monthly consumption report makes the issue obvious. The following observations are especially useful during a planned mill inspection or when collecting discharge samples:

• Large numbers of broken pieces: may indicate insufficient toughness, excessive impact severity, defects, or unsuitable ball size for the duty.
• Deep pits and rough, etched surfaces: can indicate corrosive attack or a slurry chemistry issue rather than simple mechanical abrasion.
• Flat spots or distorted shapes: may be linked to abnormal sliding, low charge movement, local impact concentration, or inconsistent heat treatment.
• Prematurely small balls: may result from high abrasiveness, a size mix that is too small for the feed, or high ball-to-ball contact under overloaded conditions.
• Sharp-edged fragments in the discharge: should be investigated promptly because they can change grinding behavior and may increase wear on pumps, screens, and classifiers.

One isolated broken ball does not prove a media-quality issue. Mills are severe environments, and occasional failures can occur. The concern is a repeated pattern, a sudden increase in fragments, or a clear change after operating conditions, ore source, ball size mix, or media specification has changed.

Start with a baseline before changing the media specification

Changing forged ball grade without understanding the baseline can create confusion. A different material may be installed at the same time as a feed change, liner replacement, or throughput adjustment, making the result impossible to interpret. Before trialing another ball, record enough operating information to distinguish material behavior from circuit variation.

Track consumption on a consistent basis

Use the same reporting period and calculation method each time. Record the mass of media added, ore tonnes processed, mill operating hours, and major stoppages. Where practical, separate additions by ball diameter. A sudden increase in total consumption matters, but a change in the addition pattern can be just as revealing. For example, frequent top-up of larger balls may signal high impact loss or an unexpected increase in coarse feed, while excessive replenishment of smaller sizes may reflect abrasion or a shift in classification performance.

Document the ore and slurry conditions

Ore competency, abrasiveness, mineral composition, feed size, and moisture all influence ball wear. Wet grinding adds further variables: pulp density, pH, water quality, reagent regime, and corrosive mineral species. A ball that performs well in one ore body may display a different wear pattern when the mine moves to a harder or more chemically aggressive zone. Comparing media consumption without noting these conditions can lead to the wrong conclusion.

Inspect the ball charge, not only the discharge

Discharge samples are convenient, but they do not always represent the entire charge. Larger balls may remain in the mill while finer worn media and fragments exit more readily. Inspection should consider the retained charge distribution, visible breakage, ball roundness, and the condition of lifters and liners. Worn liners can alter the trajectory of grinding media, changing impact energy and wear even when the ball specification has not changed.

Why hardness alone does not predict forged steel ball wear rate

High surface hardness is important because it resists abrasive cutting and deformation. However, a very hard surface is not automatically the best answer. Grinding media must also withstand repeated impact without developing cracks that propagate through the ball. The useful balance is hardness combined with core strength and impact toughness.

This balance depends on the steel chemistry, billet quality, forging process, heating control, quenching practice, and tempering process. Forging can improve the internal structure of the ball when properly controlled, while heat treatment establishes the hardness gradient and toughness needed for service. Poor process control may produce a ball that initially measures hard but is vulnerable to brittleness, inconsistent microstructure, or uneven performance across a shipment.

When comparing options, ask for meaningful production and quality information rather than relying on a single hardness statement. Relevant questions include:

• What steel grades are used for the intended milling duty?
• How is hardness checked across the ball surface and toward the core?
• How is impact toughness verified for larger-diameter media?
• Are raw materials and finished batches traceable?
• What inspection is used to control diameter, roundness, surface defects, and heat-treatment consistency?

For demanding applications, balls in the 100 mm to 150 mm range face different impact conditions from 20 mm or 30 mm media. A specification that is suitable for fine grinding may not provide the same service life in a primary or secondary mill where larger feed particles demand higher impact energy.

Mill conditions that can make good media wear too quickly

Media quality deserves attention, but an operating issue can produce high wear even with well-made forged balls. The first area to review is the ball size distribution. A charge dominated by undersized balls may struggle to break coarse ore efficiently. Operators may compensate by raising residence time or changing throughput, while the small balls continue to abrade rapidly. Conversely, too many large balls can increase impact intensity without providing the surface area needed for finer grinding.

Ball charge volume also matters. An excessively low charge can reduce cushioning and create harsher ball-to-liner impact. An overly high charge may limit effective movement and increase ball-on-ball rubbing. Neither condition is diagnosed by consumption figures alone; mill sound, power draw, throughput, grind size, and internal inspection should be read together.

Mill speed and liner profile affect the trajectory of the media. If the lift is insufficient, balls may slide and wear through abrasion rather than delivering productive impact. If trajectories are excessively aggressive, impacts can become severe and increase the risk of cracking or liner damage. As liners wear, the same rotational speed can produce a different charge motion. This is why a wear-rate review should include liner age and profile condition.

In wet circuits, corrosion can be underestimated because it may not appear as dramatic breakage. Surface roughness, pitting, dark staining, and unexpectedly rapid diameter loss can be clues. Any proposed chemistry adjustment should be considered alongside metallurgical requirements for flotation, leaching, thickening, or downstream water treatment. Solving media corrosion by changing pH without considering the rest of the plant can create a larger process problem.

Choosing forged balls for the duty rather than the catalogue

Selection begins with the function of the ball in the charge. Coarse feed generally requires sufficiently large media to transfer impact energy. As particles become finer, smaller balls provide more contact points and surface area. Most mills need a controlled mix rather than one diameter throughout the charge. The top-up strategy should preserve that distribution instead of simply adding whichever size is available.

Material choice should follow the ore and impact environment. Carbon and manganese steel grades are commonly considered where hardness, toughness, and cost need to be balanced. Alloy additions may improve hardenability or wear resistance for more demanding service, but the correct grade depends on ball diameter and the mill’s actual breakage conditions. It is not useful to select a grade solely because it is harder on paper.

For a broad range of mineral processing duties, Hot-rolled steel balls are available in diameters from 20 mm to 150 mm and can be specified in materials such as B2, B3, 60Mn, 65Mn, 40Cr, 42CrMo, and related grades. Product data should be treated as a starting point for matching the media to the circuit. For example, a stated surface hardness above 60 HRC and impact toughness of at least 12 can be relevant indicators, but their value depends on consistent process control and compatibility with the grinding duty.

Before placing a large order, define the trial clearly. Keep the compared ball sizes and addition practice consistent where possible. Avoid judging performance during an unusual ore campaign, a major liner change, or a period of unstable throughput. Inspect recovered balls at intervals, record fragment quantity, and compare consumption against processed tonnes under comparable conditions. A trial should assess grinding performance as well as mass loss; low media consumption is not a win if the circuit loses throughput or produces a coarser product.

A practical response when consumption rises unexpectedly

When forged steel ball wear rate rises, begin by confirming the measurement. Check inventory records, scale accuracy, addition logs, and whether balls were added during a shutdown but assigned to the wrong reporting period. Then compare the affected period with a normal period using ore tonnes, operating hours, feed size, power draw, water addition, pH, and liner status.

1. Collect representative worn balls and fragments from the discharge and, where safe and practical, inspect the retained charge during downtime.
2. Separate observations into gradual abrasion, pitting, flattening, surface cracking, and complete breakage. Do not group all loss under “wear.”
3. Review recent process changes: ore source, crusher product size, cyclone operation, mill speed, charge volume, liner condition, and slurry chemistry.
4. Compare the actual ball size distribution with the intended charge design. Check whether large impact media are disappearing too quickly or whether fine media are accumulating.
5. Review batch traceability and quality records for the media delivered during the affected period, particularly if the pattern is isolated to a specific shipment.

This order helps prevent an expensive but unproductive response, such as changing to a harder ball when the true issue is corrosive slurry or a worn liner profile. It also gives technical teams and media suppliers a shared factual basis for discussing the problem.

When a lower consumption figure can be misleading

A ball with very slow wear may not always improve total grinding cost. If it remains large for too long, it can distort the desired size distribution. If it lacks the surface condition or toughness needed for the ore, it may reduce breakage efficiency even while showing low apparent mass loss. Likewise, a harder ball may transfer less useful energy if its diameter selection is wrong for the feed.

The better performance measure is the relationship between media consumption, mill throughput, product size, energy behavior, and the stability of the charge. A durable forged ball should wear predictably, resist premature breakage, and support the grinding duty over its service life. Evaluating those factors together provides a more reliable basis for controlling forged steel ball wear rate than comparing a single hardness value or a short-term addition record.
