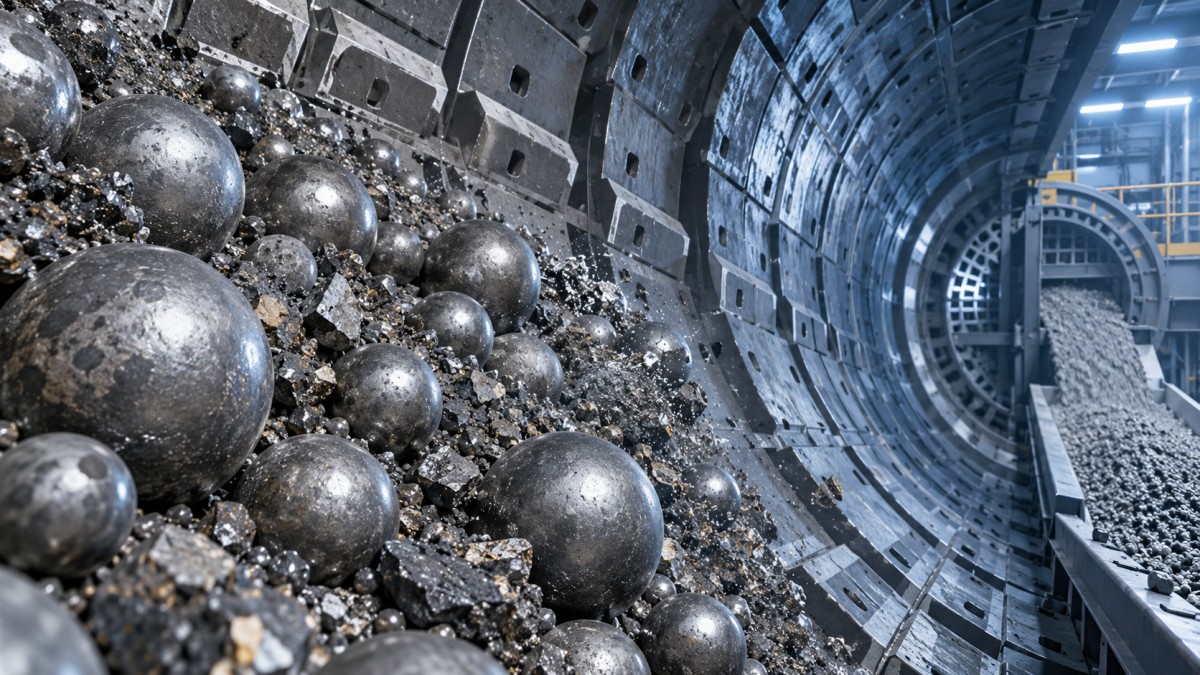

Selecting Hot Rolled Steel Balls for High-Throughput Mining Grinding Circuits

High-throughput grinding circuits expose media to repeated high-energy impacts, abrasive slurry, changing ore competence, and long residence times. Selecting hot rolled steel balls for mining therefore starts with the mill duty, not with a hardness value alone. A ball that performs well in a fine-grinding stage can break prematurely in a large-diameter SAG or ball mill, while an extremely hard ball may deliver poor value if its toughness is insufficient for the impact environment.

The working target is a stable grinding charge: balls should retain useful diameter, resist spalling and breakage, and maintain a predictable wear profile between additions. When those conditions are controlled, mill power is converted into ore breakage more consistently, classification is easier to stabilize, and unexpected media-related stoppages become less likely.

Match Ball Size to the Breakage Duty

Ball diameter determines the balance between impact energy and grinding contact area. Larger balls carry more impact energy and are usually needed where the feed contains coarse, competent particles. Smaller balls create more contact points and are better suited to finer feed and the later stages of particle-size reduction. Choosing the largest available diameter simply because the circuit is high-capacity can leave too few effective contacts for fine grinding.

Size selection should be based on the actual mill feed size distribution, target grind, mill diameter, liner profile, charge level, and rotation conditions. A circuit treating a variable blend of fresh rock and softer ore may require a controlled mix rather than a single nominal ball size. The coarse fraction supplies impact breakage; intermediate and smaller sizes fill the voids and maintain abrasive grinding action.

A useful operational warning is a charge that looks full but produces a rising coarse fraction at the mill discharge. This can result from insufficient large media, but it can also indicate excessive wear that has shifted the charge toward undersized balls. These are different problems. Adding only large balls may restore impact briefly while increasing void space, whereas adjusting the replenishment mix addresses the developing size distribution.

Hardness Must Be Read With Toughness and Structure

Surface hardness is relevant because it influences abrasion resistance, but it does not describe the entire ball. Mining balls are loaded from the outside inward. Repeated impacts can initiate cracks below the surface, particularly when a hard outer layer is paired with a less suitable internal structure. A specification that states only a surface hardness target leaves a major failure mechanism unaddressed.

For high-impact duty, review the heat-treatment route and the consistency of hardness from surface to core. The objective is not identical hardness at every location; it is a controlled profile that resists wear without creating a brittle condition. Material chemistry, heating uniformity, quenching control, and tempering all affect this balance. Carbon and alloy content influence hardenability, while excessive segregation or process variation can create different behavior between production lots.

As an example, a B2 or B3 grade may be considered where the circuit requires a combination of wear resistance and impact strength, but the grade name alone is not a performance guarantee. The relevant question is whether the supplied diameter, heat treatment, and verified mechanical properties suit the actual impact severity. For a product range that includes diameters from 20 mm to 150 mm, the thermal response of a 30 mm ball should not be assumed to represent that of a 125 mm ball.

Separate Abrasion Wear From Breakage Problems

Media consumption is often discussed as a single number, yet the physical causes matter more than the combined total. Uniform diameter reduction with smooth, rounded surfaces points toward abrasive wear. Chipped surfaces, shelling, flakes, or broken fragments indicate a different condition involving impact, fatigue, or metallurgical inconsistency. Treating both outcomes as ordinary wear can conceal a problem until the mill charge becomes unstable.

• Uniform wear is assessed through diameter loss and the rate at which balls move through the charge size distribution. It is strongly influenced by ore abrasiveness, slurry chemistry, grinding intensity, and ball hardness.
• Spalling often appears as detached surface layers. It deserves examination of impact conditions, internal quality, heat treatment, and whether the mill is operating with an unsuitable ball-size balance.
• Breakage requires immediate segregation and inspection. Broken balls can damage liners, interfere with discharge systems, and distort media consumption records. Retain representative fragments for fracture-surface review rather than discarding them with worn scrap.

Mill operating conditions must be considered before attributing all damage to the media. A low charge level, altered liner geometry, feed surges, tramp steel, or an excessive proportion of large balls can intensify impact loading. Conversely, a sudden rise in abrasion may follow an ore blend change or a shift in cyclone performance that returns coarser material to the mill.

Specify Acceptance Criteria That Can Be Verified

A purchase description should connect material requirements to the intended duty. Stating a nominal alloy grade and ball diameter is rarely enough for a high-throughput circuit. Require a defined size tolerance, a sampling basis, traceable production lots, and test evidence appropriate to the order. Hardness readings should identify the test locations and method. Where impact performance is important, confirm the stated test condition and units rather than comparing values taken from unrelated test methods.

For certain forged grinding media, technical data may state surface hardness above 60 HRC and impact toughness at or above 12 J/cm². These figures are useful only when linked to the specified material, ball size, sampling method, and heat-treatment condition. A result from a small sample cannot automatically establish the behavior of every diameter in a shipment.

Visual acceptance should also be defined. Rejectable conditions can include deep laps, pronounced seams, crushing damage, visible cracks, serious out-of-roundness, or contamination from mixed sizes and grades. Surface scale by itself is not necessarily evidence of poor performance, but it should not prevent inspection for defects. Lot identification must remain visible through packing, delivery, and charging so that later mill observations can be connected to the correct batch.

Use a Trial That Preserves Meaningful Comparisons

A trial is valuable when it isolates the media variable. Charging a new ball type during an ore change, liner change, or throughput ramp creates results that are difficult to interpret. Establish a baseline using the existing media under a recorded operating window, then introduce the trial material with a known addition mass and size mix. Track mill feed rate, feed and product size, power draw, circulating load, charge additions, and media recovery where practical.

Do not judge the trial after only observing a few balls at the discharge. A single worn or damaged ball may have experienced an unusual path through the mill. Examine a representative sample by size class and compare the distribution with the planned charging pattern. The most useful result is evidence that the media maintains its expected condition while circuit performance remains stable under comparable ore and operating conditions.

Where the circuit requires a forged alternative alongside hot rolled balls, an Forged steel ball can be evaluated under the same controlled charging and sampling approach. The comparison should focus on wear profile, breakage behavior, and charge evolution in the specific mill, rather than treating the forming method as a universal indicator of performance.

Plan Delivery and Charging Around Lot Control

Grinding media can lose traceability before it enters the mill. Packaging should protect balls from mixed lots, moisture accumulation, and uncontrolled handling damage. Upon receipt, verify diameter classes, quantity, lot markings, and package condition before material is transferred to bulk storage. If multiple grades or sizes are used, separate storage bays and clear charging records prevent accidental substitution.

Charging discipline affects the value obtained from the selected media. Irregular additions cause the charge to drift, especially in circuits with high throughput and substantial daily consumption. A controlled addition schedule should reflect measured consumption and the intended size distribution. Replenishing only when performance has visibly deteriorated usually means the mill has already operated with a non-optimal charge for part of the interval.

The strongest selection decision combines metallurgical suitability with evidence from the actual circuit. Ball size, hardness profile, toughness, manufacturing consistency, and charging practice operate as one system. A technically sound media specification gives the circuit a stable starting point; routine sampling and operating records determine whether that specification continues to fit the ore and mill conditions.
